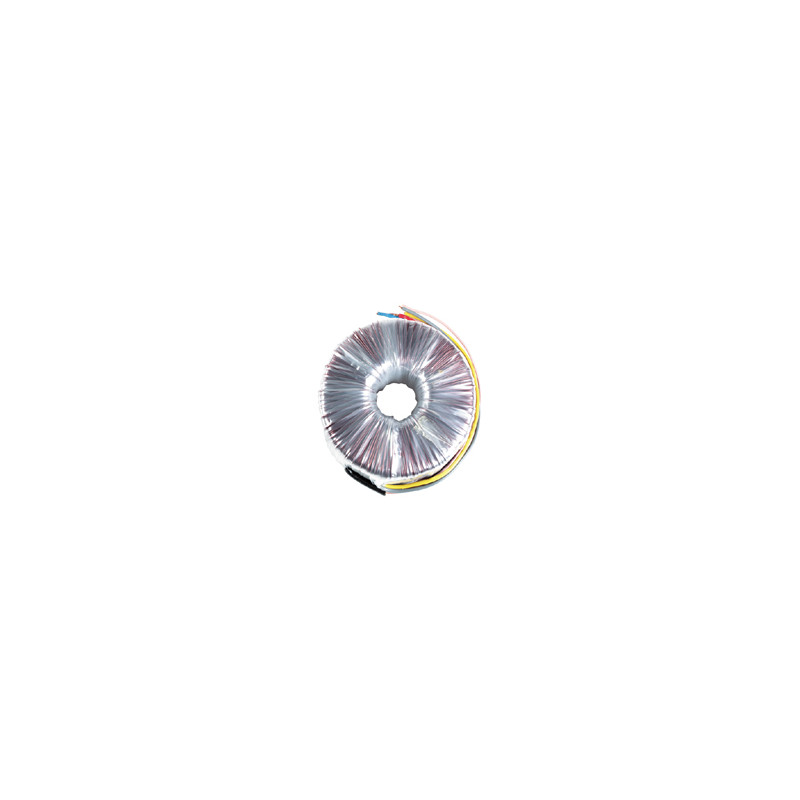

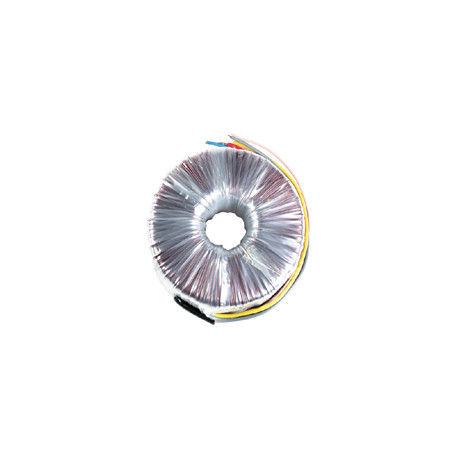

TOROIDAL TRANSFORMER 15VA 2 x 12V / 2 x 0.63A

Specifications

• voltage: 2 x 12V
• current: 2 x 0.63A
• weight: 0.58kg
• Ø: 76mm max.
• height: 44mm max.
• fixing bolt: M6 x 50mm
• nut: M6
• metal washer: Ø55mm
• rubber washer: Ø55mm
• connections: 200mm PVC wire, 10mm tinned and stripped
• primary: black - black: 1 x 230V
• secondary: *red - yellow / *blue - grey (* = on)
• primary voltage: 230V / 50Hz
• primary-secondary insulation: 500Vdc
• secondary insulation - secondary: 500Vdc
• insulation category: class A, 105°C
