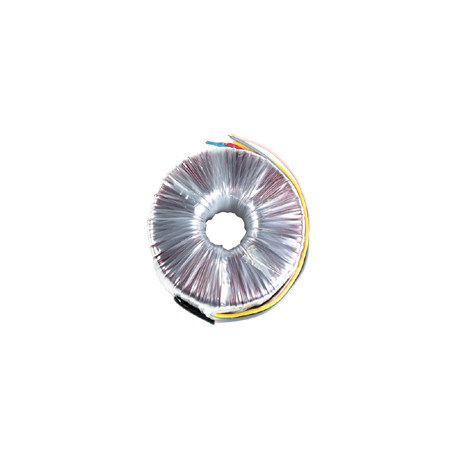

TOROIDAL TRANSFORMER 160VA - 2x12V - 2x6.66A

Specifications

• voltage: 2 x 12V
• current: 2 x 6.66A
• weight: 2.30kg
• Ø: 115mm max.
• height: 66mm max.
• fixing bolt: M8 x 70mm
• nut: M8
• metal washer: Ø92mm
• rubber washer: Ø96mm
• connections: 200mm PVC wire, 10mm tinned and stripped
• primary: black - black: 1 x 230V
• secondary: *red - yellow / *blue - grey (* = on)
• primary voltage: 230V / 50Hz
• primary-secondary insulation: 500Vdc
• secondary insulation - secondary: 500Vdc
• insulation category: class A, 105°C
