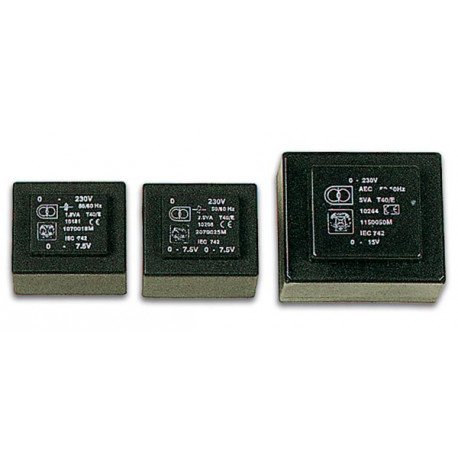

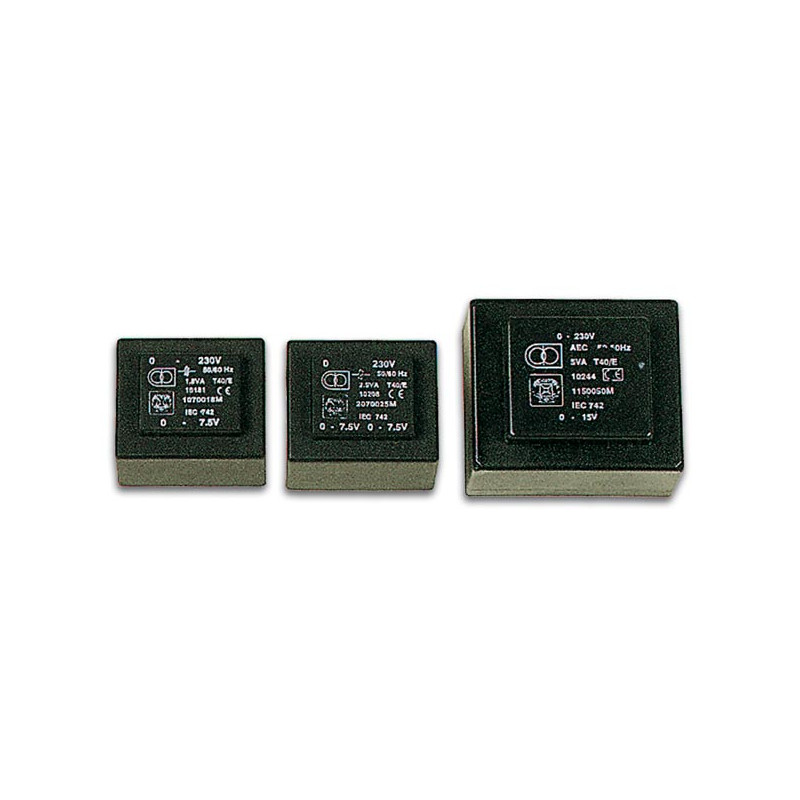

Transformateur Moulé 2.5VA 1 x 24V / 1 x 0.104A

Specifications

• primary voltage: 230V ± 10%, 50/60Hz
• voltage: 1 x 24V
• current: 1 x 0.104A
• insulation resistance: >5Mohm / 500Vdc
• dielectric strength: >5kV min.
• designed for ambient temperature of max. 40°C
• thermal class E materials, max. temperature 120° C
• short circuit protection up to 3VA
• thermal fuse protection possible
• max. temperature for class E: 95°C
• secondary voltage tolerance: +7% - 3% at 230V and maximum load
• perfect soldering medium for wave bath
• CE label
• creep distances according to IEC742
