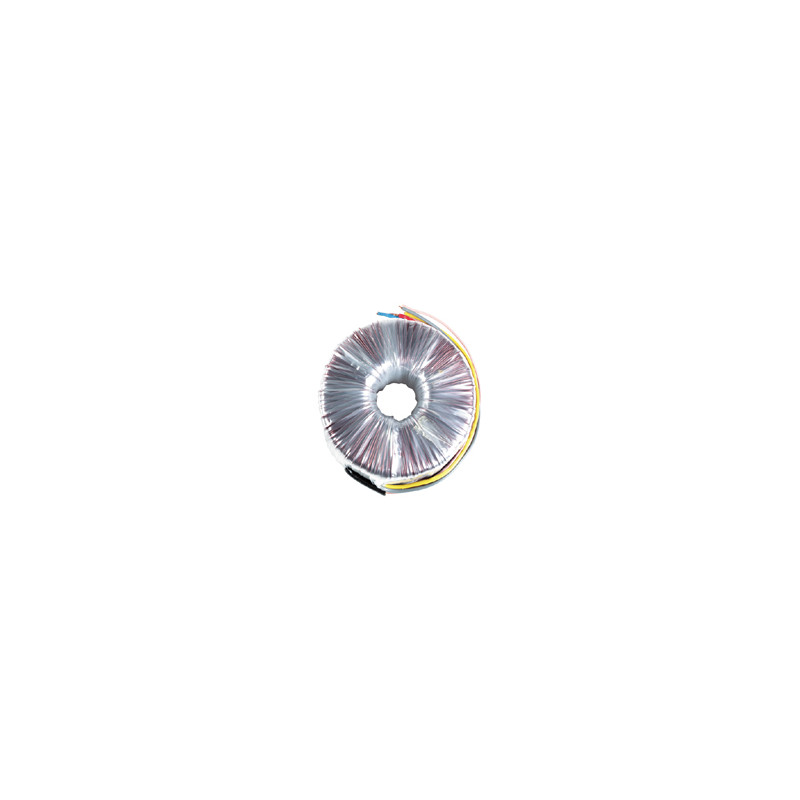

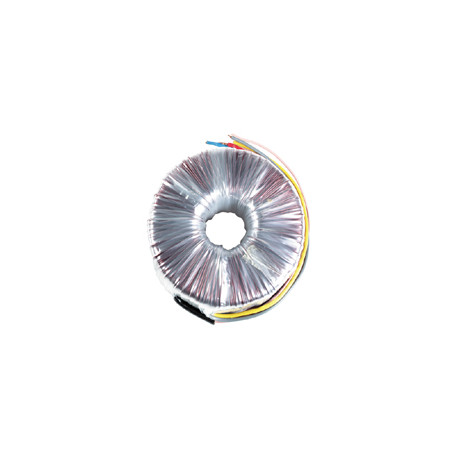

TOROIDAL TRANSFORMER 80VA 2x12V 2x 33A

TOROIDAL TRANSFORMER 80VA 2x12V 2x 33A View larger

Description

TOROIDAL TRANSFORMER 80VA 2x12V 2x 33A



Specifications

  • voltage: 2 x 12V
  • current: 2 x 3.33A
  • weight: 01.00kg
  • Ø: 101mm max.
  • height: 39mm max.
  • fixing bolt: M6 x 45mm
  • nut: M6
  • metal washer: Ø72mm
  • rubber washer: Ø74mm
  • connections: 200mm PVC wire, 10mm tinned and stripped
    • primary: black - black: 1 x 230V
    • secondary: *red - yellow / *blue - grey (* = on)
  • primary voltage: 230V / 50Hz
  • primary-secondary insulation: 500Vdc
  • secondary insulation - secondary: 500Vdc
  • insulation category: class A, 105°C



TR.ILP.3UR12

15891

5410329231330

EUR 41.50

Order on request only
