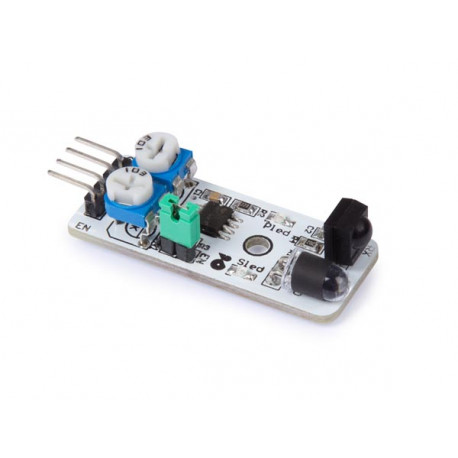

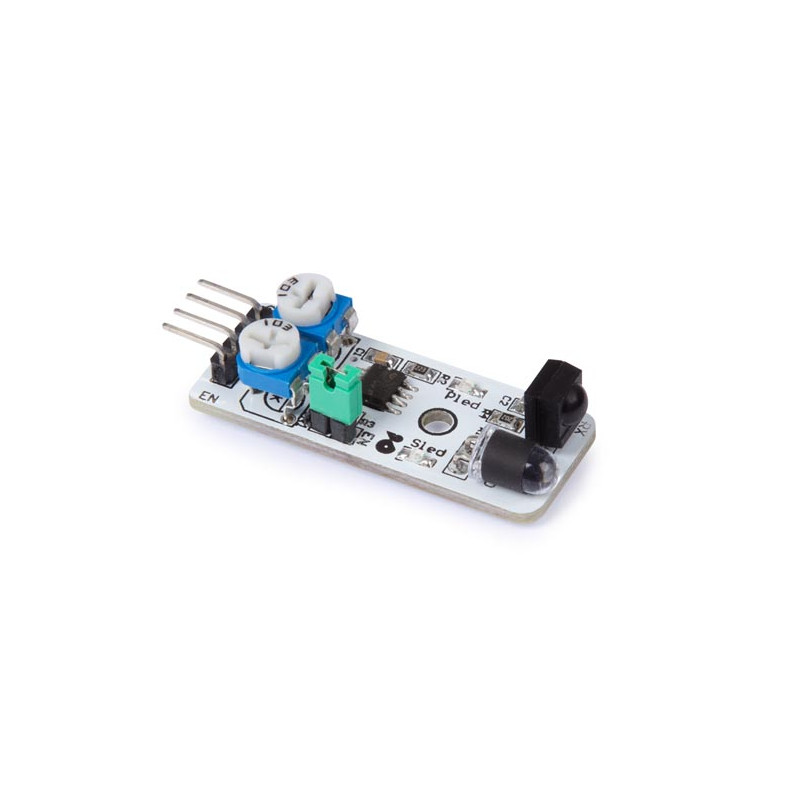

IR Obstacle Avoidance Sensor Module

Specifications

• Operating voltage: 3.3 V to 5 V
• Output: digital (on/off)
• Detection threshold: adjustable via 2 potentiometers
• Detection range: 2 to 10 cm
• Setting R6: frequency 38 KHz (preset)
• Setting R5: IR LED duty cycle (preset)
• Operating temperature: -10 °C to +50 °C
• Angle of coverage: 35°.
• I/O interface: 4-wire interface (- / + / S / EN )
• Dimensions: 45 x 16 x 10 mm
• Weight: 9 g
