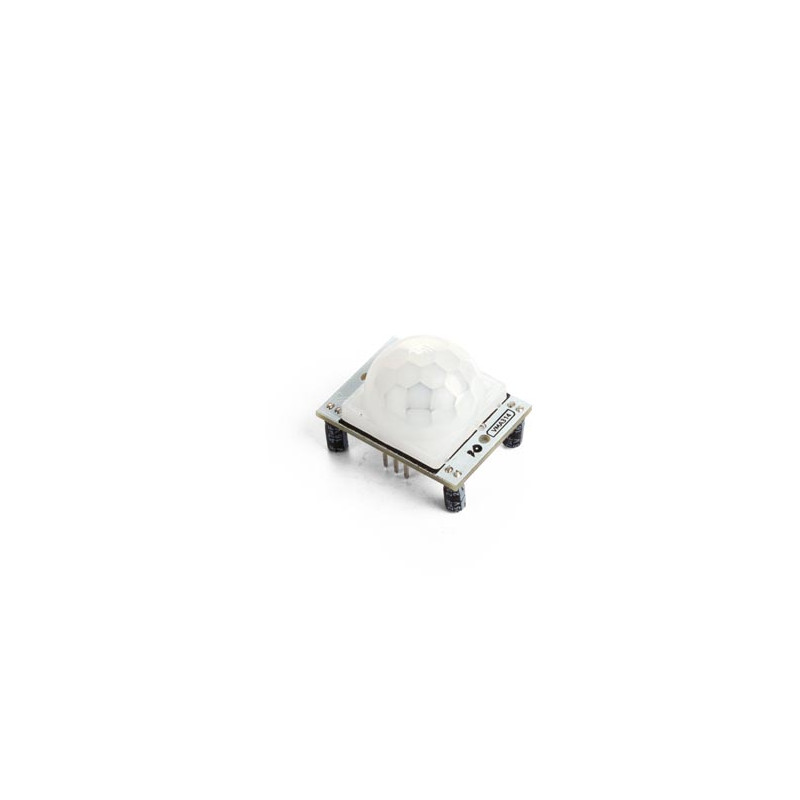

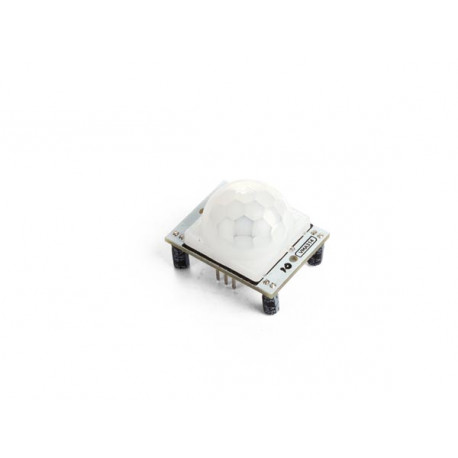

Pir Motion Sensor for Arduino PIR

Specifications

• Voltage: 5 VDC
• Connection: 3 pins: GND, VCC and OUT
• Settings: sensitivity and time delay (with adjustable potentiometer)
• Time delay: 3 to 200 s
• Output level: high = 3 V, low = 0 V
• Maximum range: 7 m ( 23 ' )
• Operating temperature: 15 °C to +70 °C
• Detection angle: 120°.
• Dimensions: 32 x 24 x 25 mm (1.26 x 0.95 x 0.98")
