Code Keypad

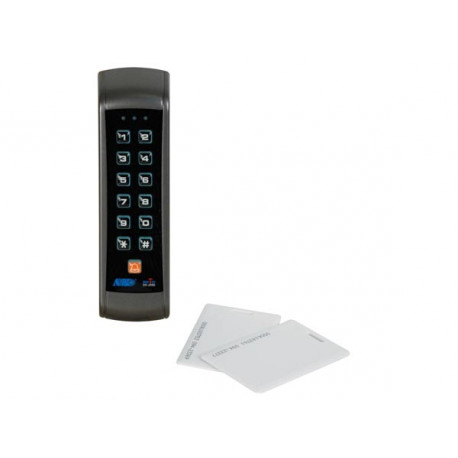

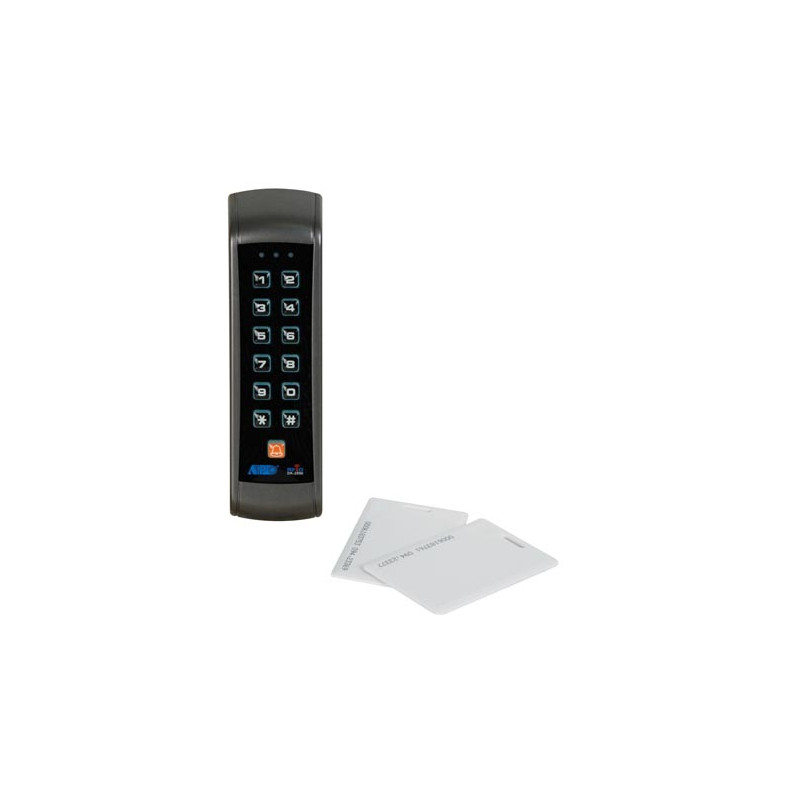

The HAA2890 is a compact, weather-resistant, standalone code keypad for vertical mounting. It combines a multifunction keypad and an EM-type proximity card reader.

Features

• durable epoxy-coated, backlit keypad with doorbell function
• weather-resistant plastic housing for vertical mounting
• operates with PIN codes and EM-type cards
• standalone operation
• expandable built-in I/O ports for coded connection between multiple keypads
• relay contacts for door control and doorbell
• two levels of illumination, useful in low-light conditions
• user codes, visitor codes, and master code
• standalone electric access control system
• suitable for fail-secure or fail-safe electric strikes
• programmable intelligent exit button: timer control, warning signal, or action based on short/long press
• shared, grouped & personal PIN codes for using EM cards with different security levels
• programmable relay output timer: from 1 second up to over 24 hours
• optional: HAA2866/TAG - HAA2866/TAG2
• user manual: available in English only

Specifications

• housing: ABS
• operating voltage: 11-15 VDC
• current: 60-90 mA
• relay output 1: voltage-free contact NC + NO 2 A / 24 VDC max.
• relay output 2: voltage-free contact NO 2 A / 24 VDC max.
• tamper contact: voltage-free contact NC 50 mA / 12 VDC
• operating temperature: -20 °C to +70 °C
• humidity: 5-95% RH, non-condensing
• IP rating: IP55
• weight: 160 g / 5.64 oz
• dimensions (H x W x D): 168.5 x 46.5 x 24 mm / 6.63" x 1.83" x 0.94"
