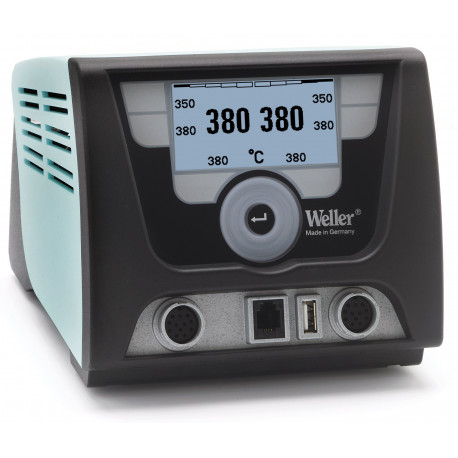

Weller - Digital power - WX2 - 240W

Features

Digital power supply, 240W / 230V.
Digital temperature control 50°C - 550°C (depending on the tool).

• Very high capacity and fast heat-up time.
• Use of one tool up to 200W.
• Simultaneous use of up to two tools 120W.
• Robust capacitive touch screen.
• Intuitive, turn and click operation with input button and finger guide.
• Multi-language menu.
• Two connections that can be used to control smoke extraction units, preheat plates and programmable logic controllers. (PLC)
• Automatic tool recognition.
• USB port for firmware updates, configuration settings and logging systems.
• Intelligent tools, A/D converter and memory in the tool handle.
• Automatic shutdown by sensors in the tool handle.
• No calibration required.
• Antistatic
• Various equipotential bonding options on the device.

Technical data:

• Dimensions (L x W x H): 170 x 151 x 130mm
• Weight: 3,2 Kg
• Safety class: I, antistatic armature.
• Fuse: T 2A
• Temperature accuracy: +- 9°C
• Temperature stability: +- 2°C
• Equipotential bonding: 3.5mm plug.
