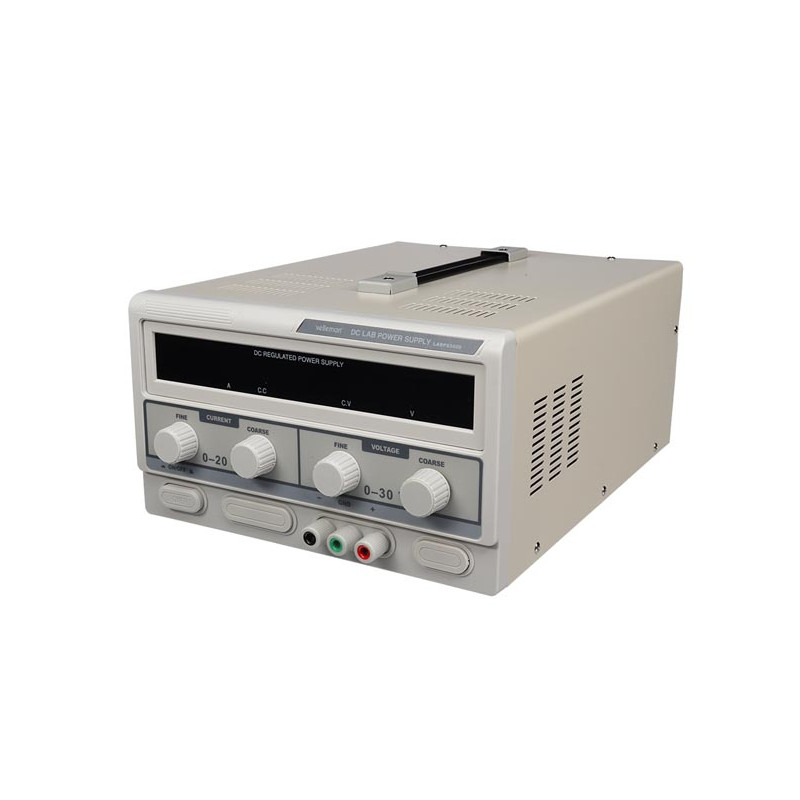

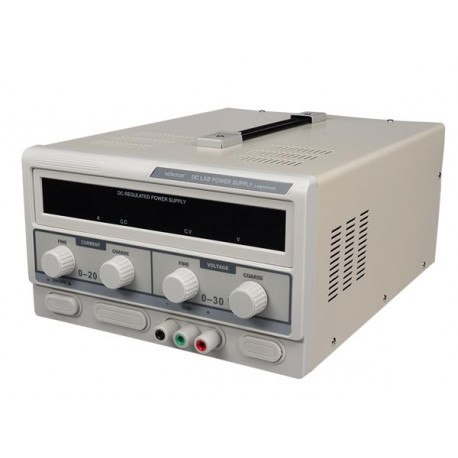

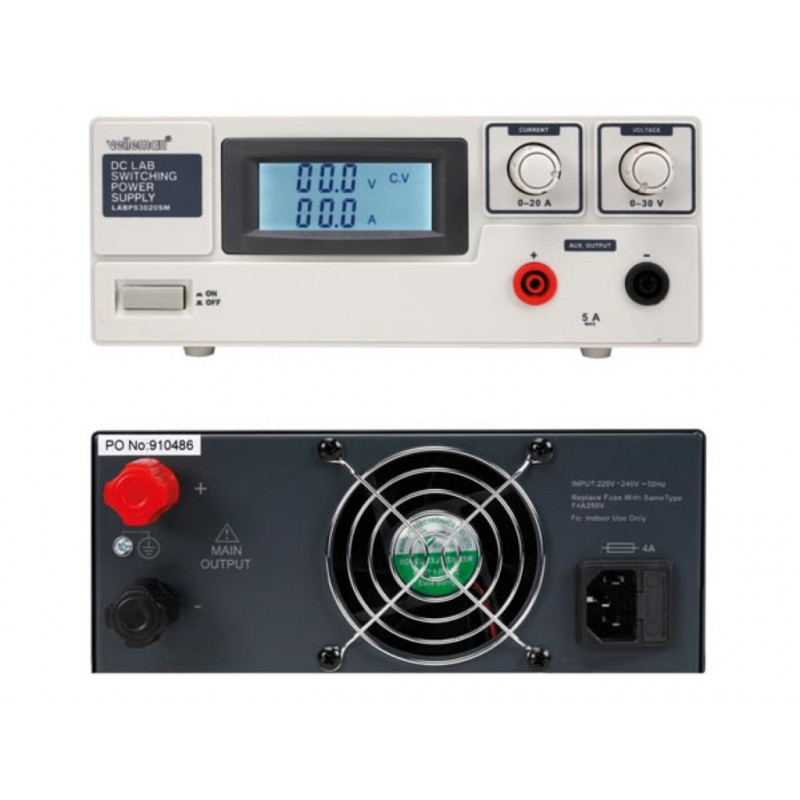

Laboratory power supply 0-30Vdc 0-20AMax LCD display

Features

• LED display for voltage and current
• protection mode: current limitation
• colour: white-grey
• only for indoor use
• pollution degree II
• fuse protection

Specifications

• input voltage: 230 VAC 50 Hz 5.4 A 1080W pf: 0.78
• output voltage: 0-30 VDC max. adjustable
• output current: 0-20 A max. adjustable
• ripple voltage: =/< 1.5 mV
• fuse: F8 / 250V
• max. relative humidity: <90% max.
• altitude: max. 2000 m
• operating temperature: 5°C - 40°C
• dimensions: 265 × 140 × 360 mm
• weight: 17.25 kg
