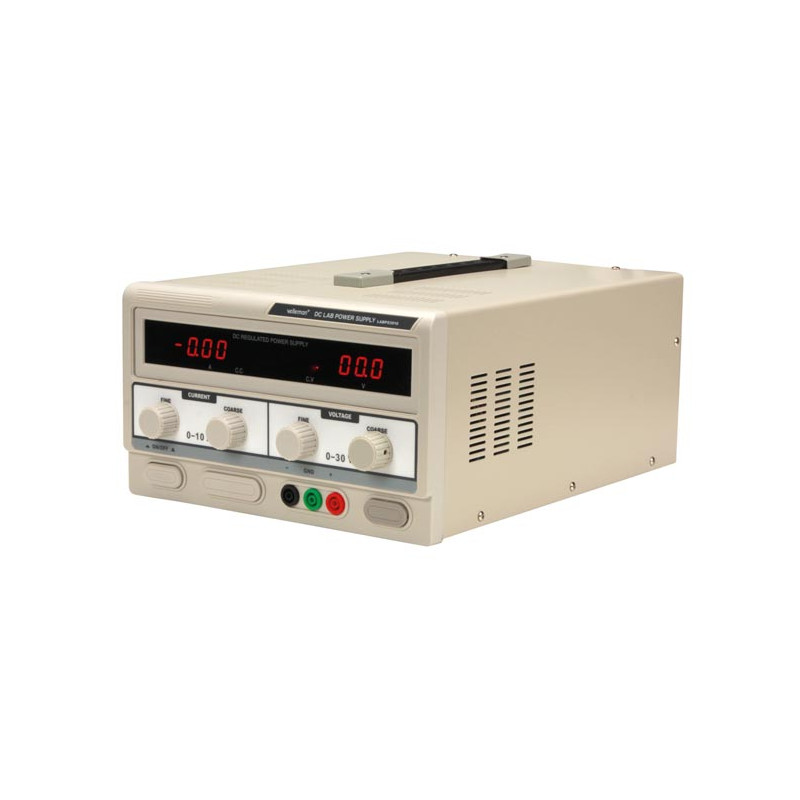

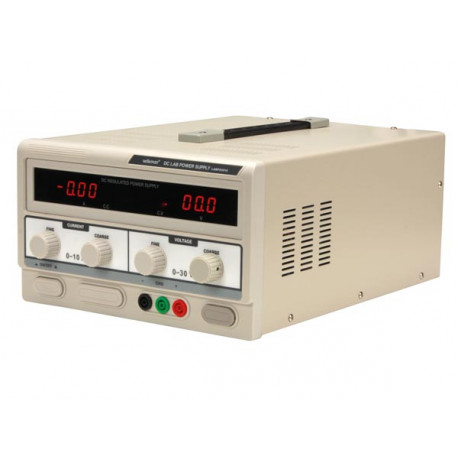

Elix - Laboratory power supply 0-30V 0-10A LED display

Features

• LED display for voltage and current
• protection mode: current limitation
• colour: white-grey
• insulated terminals
• output connectors: IEC1010
• only for indoor use
• pollution degree II
• measurement category CAT III
• fuse protection

Specifications

• input voltage: 230 VAC 50 Hz 2.9 A 540 W pf: 0.77
• output voltage: 0-30 VDC max. adjustable
• output current: 0-10 A max. adjustable
• ripple voltage: =/< 200mVp-p
• altitude: max. 2000 m
• operating temperature: 5°C - 40°C
• max. relative humidity: <80
• fuse: F5AL 250 V
• dimensions: 265 × 140 × 360 mm
• weight: 12.4 kg
