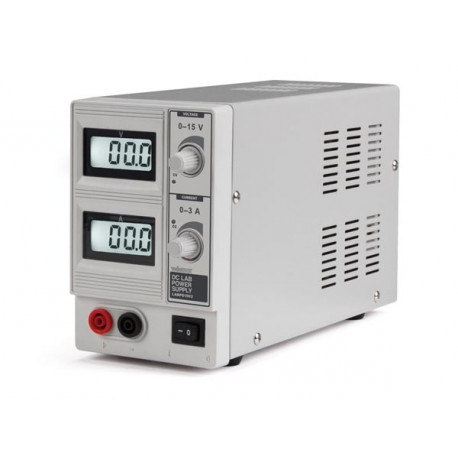

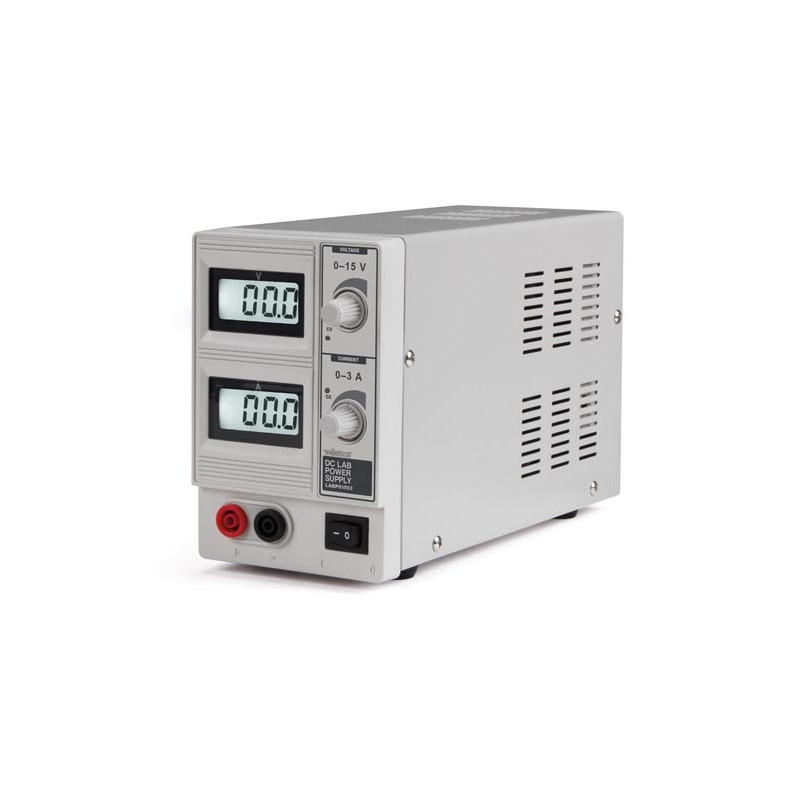

DC LAB power supply 0-15VDC/0-3Amax dual LCD display

Features

• LCD display for voltage and current
• protection mode: current limiting
• colour: white-grey
• insulated terminals
• output connectors: IEC1010
• only for indoor use
• pollution degree II
• measurement category CAT III
• fuse protection

Specifications

• input voltage: 230 VAC 50 Hz 0.8 A 85 W pf: 0.75
• output voltage: 0-15 VDC max. adjustable
• output current: 0-3 A max. adjustable
• ripple voltage: 1 mV
• altitude: max. 2000 m
• operating temperature: 5°C - 40°C
• max. relative humidity: <90
• fuse: F1AL 250 V
• dimensions: 95 x 150 x 240 mm
• weight: 2.958 kg
