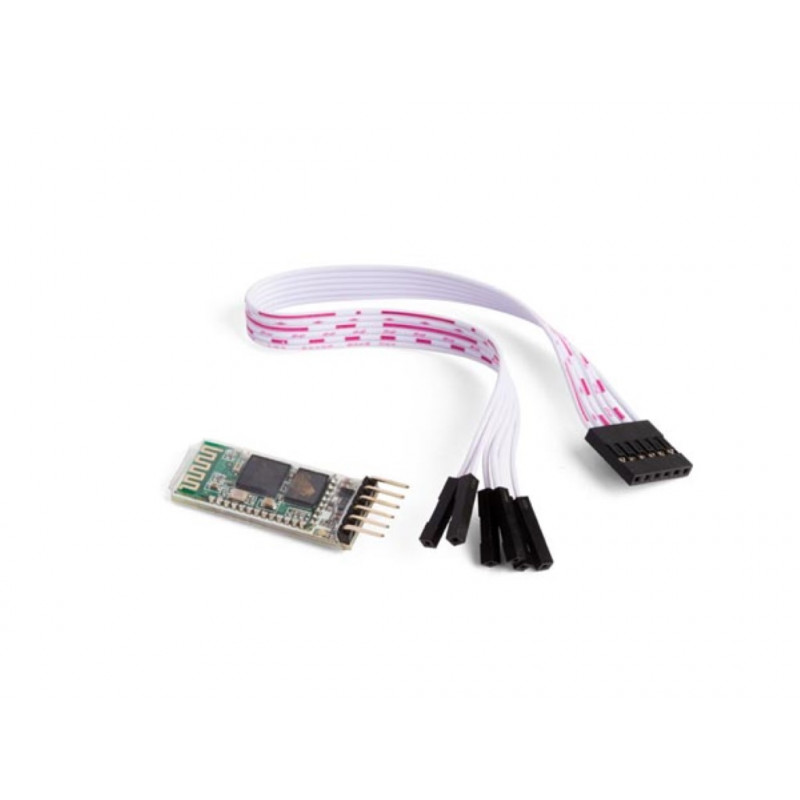

HC-05 Bluetooth transmission module

HC-05 Bluetooth transmission module, 2.45GHz, 10m range, CSR BC417 chip, microcontroller integration module

Easily integrate a microcontroller into a Bluetooth network with the HC-05 transmission module. This module, designed with the powerful CSR BC417 Bluetooth v2.0 chip, operates at a frequency of 2.45 GHz and can reach a range of 10 meters in an open field. The module provides secure authentication and a Bluetooth serial port profile. Whether you're a professional or a beginner, the HC-05 is easy to use and requires no coding or specialized skills.

Specifications

• frequency: 2.45 GHz
• asynchronous speed: max. 2.1 Mbps
• security: authentication
• profile: Bluetooth serial port
• power supply: 3.6 - 6 VDC
• working temperature: max. 60°C
• chip: CSR (Cambridge Silicon Radio) BC417 bluetooth v2.0
• range in open field up to: 10 m
• Data signal voltage (Tx and Rx): 3.3 VDC
