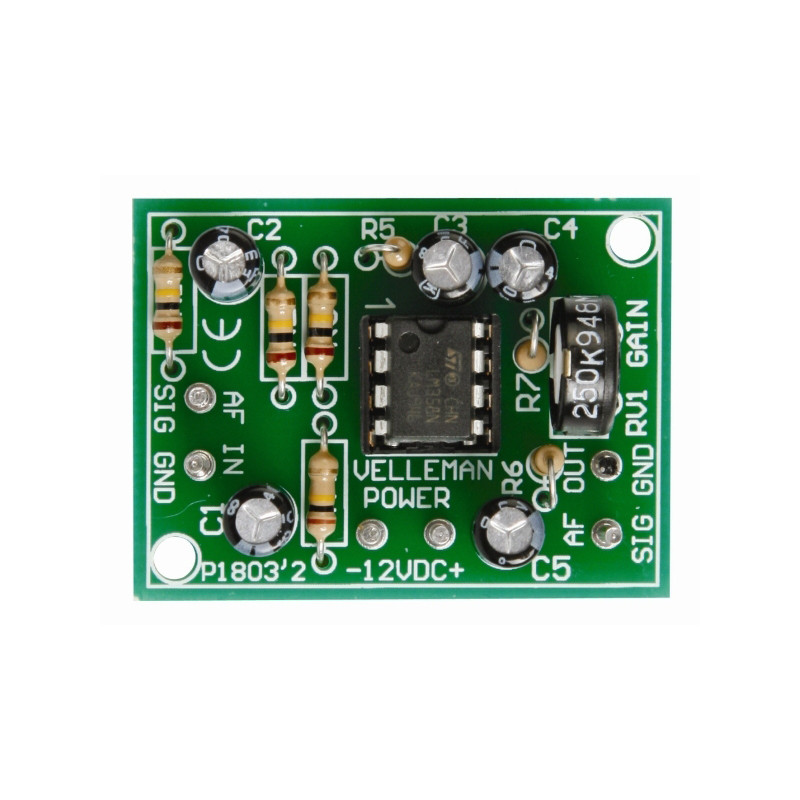

WSAH1803 - Universal Mono preamplifier

This kit is designed as an intermediate circuit for all kinds of acoustic applications with insufficient input signal. Applications as a microphone amplifier or for level matching.

Specifications

• Power supply: 10-30 VDC / 10 mA
• Adjustable output level: max. 40 dB
• Frequency range: 20 Hz to 20 kHz ± 3 dB max.
• Input signal: 40 mV
• Colour: Green
• width: 30 mm
• Depth: 44 mm
• Weight: 32 g
• Instruction manual languages: English, French, German, Spanish, Dutch.
