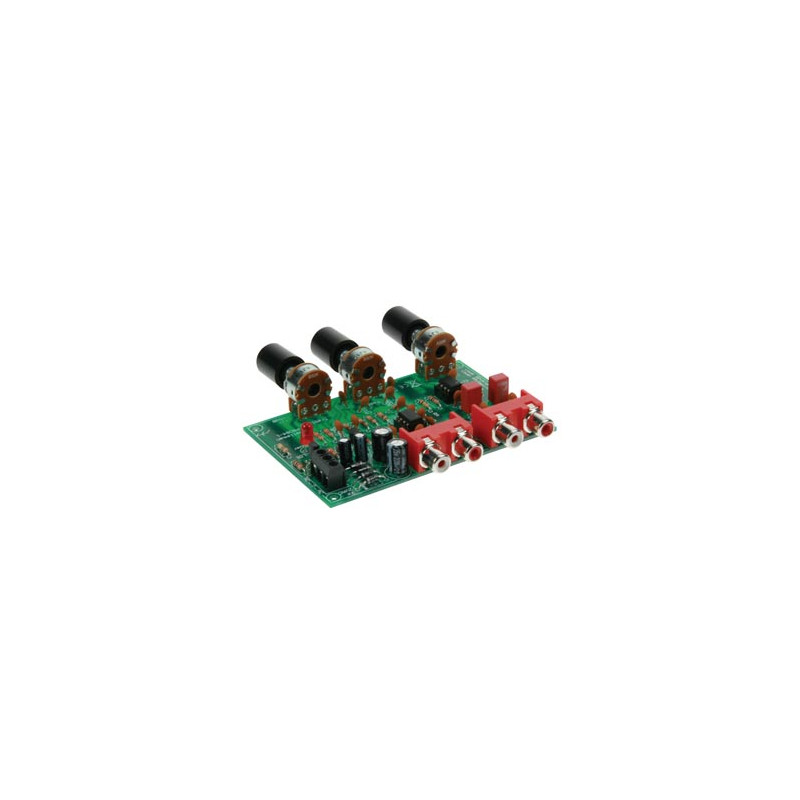

WSAH8084 - Volume and tone control - preamplifier

Specifications

• Power supply: 2 x 12 VAC / 100 mA
• Dimensions: 105x70mm
• Weight: 115 g
• Frequency: 3 Hz - 500 kHz (-3dB)
• Amplification: x1
• Signal: 98 dB
• Maximum output voltage: 5V
• RMS tone control: + and -15 dB @ 20 Hz + and -15 dB @ 15 kHz
• Impedance: 50k ohms
• Stereo volume level control
• Baxandall-type stereo bass and treble control
• Bass and treble potentiometers
• Configurable attenuation and amplification
