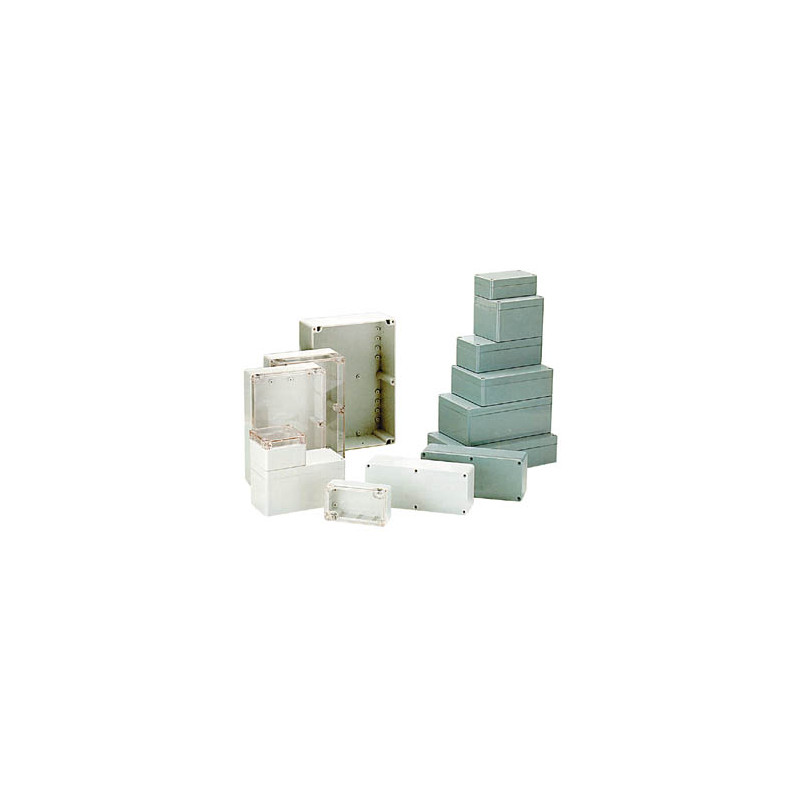

Waterproof ABS case 222 x 146 x 75 mm

The enclosures are made of impact resistant ABS (working temperature: -20°C to +100°C).

Specifications

• Material: ABS
• Dimensions: 222 x 146 x 75 mm
• Colour: dark grey
• IP65 or IEC529 and NEMA4 standards (dust and splash proof).
• The cover and bottom are equipped with a tooth and groove assembly system with a neoprene gasket.
• The mounting holes and nuts for the cover are outside the sealed parts, preventing dust and moisture from entering this part.
• The bottom is provided with brass spacers for horizontal mounting of plates or for earthing, etc.
• The slides on the inside allow vertical mounting of plates.
