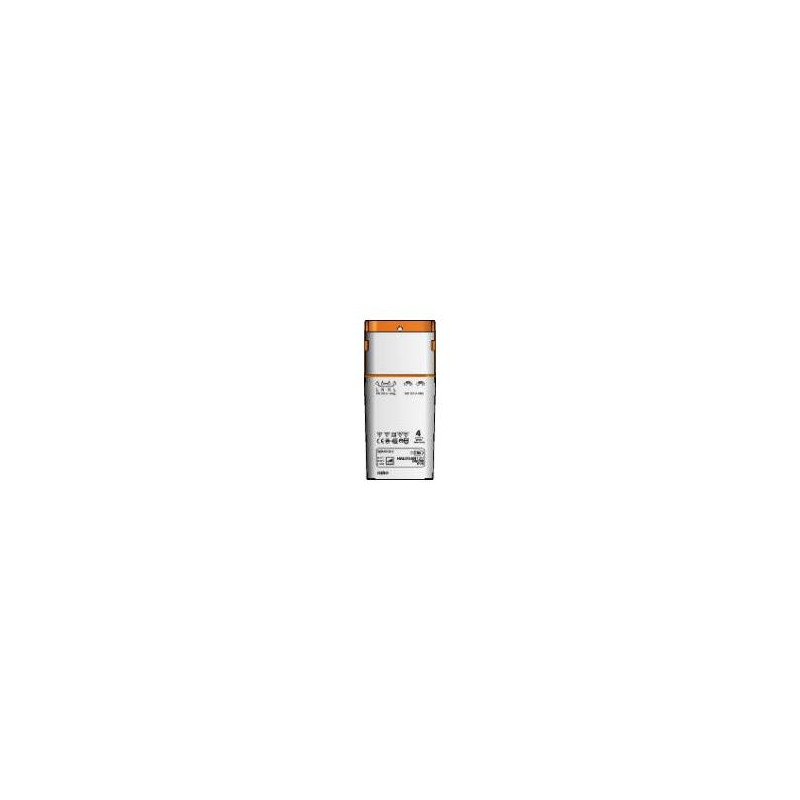

NIKO - Electronic Terminal Transformer 230V/12V 20-70W

Specifications

• Supply voltage: 230 Vac ± 10 %, 50 Hz
• Output voltage: 11.5 Vac, 35 kHz
• Minimum load: 20 W
• Maximum load: 70 W
• Dimensions (HxWxD): 116 x 52 x 32 mm
• Primary wire connection: 4-way primary terminal connection: 1 x 2.5 mm² or 2 x 1.5 mm² per screw terminal
• Secondary wire connection: 4-fold secondary terminal connection: 1 x 2.5 mm² or 2 x 1.5 mm² per screw terminal
• Number of outputs (pairs): 2
• Maximum length of auxiliary connection wire: 2 m
• Maximum ambient temperature: +50 °C
• Maximum housing temperature (Tc): 80 °C
• Minimum drill diameter: 55 mm
• Minimum clearance in false ceiling: 100 mm
• Application: suitable for flush mounting in furniture
• Mounting: flush mount
• Protection: integrated, automatically resettable protection against short circuit, overload and overheating
• Fire protection
• IP20
• Weight: 105 g
