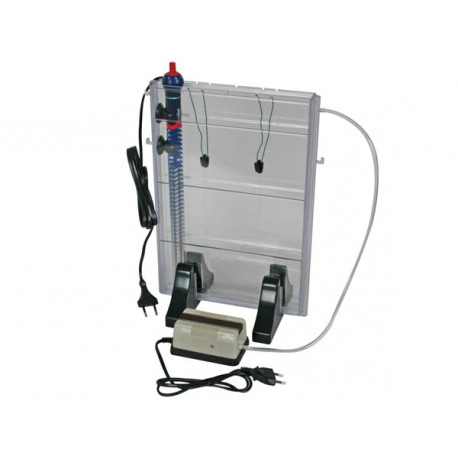

Vertical etching machine with pump and resistor

Etching machine for making your own printed circuit boards. The pump continuously stirs the iron perchloride solution and the heating resistor ensures an optimum temperature of 32 °C and thus reduces the etching time.

Specifications

• for single-sided and double-sided PCBs up to 200 x 250 mm
• power supply: 230 VAC 50 Hz
• power consumption: 300 W
• etching material: acrylonitrile-styrene
• tank capacity: max 2.5 L
• average etching time: 4 minutes
• resistor and pump with connection cables and 2 x 2-pole euro plugs
• iron perchloride not included
• dimensions:
• exterior: 36 x 28 x 4 cm
• interior: 35 x 23 x 3 cm
