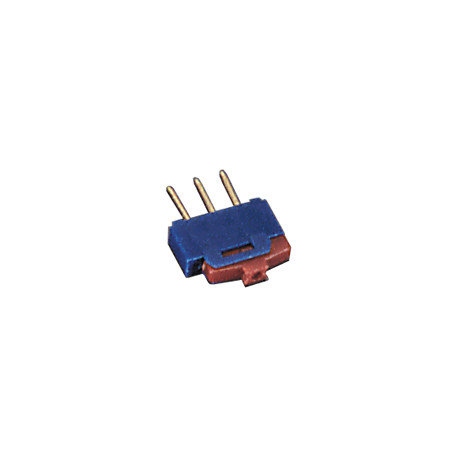

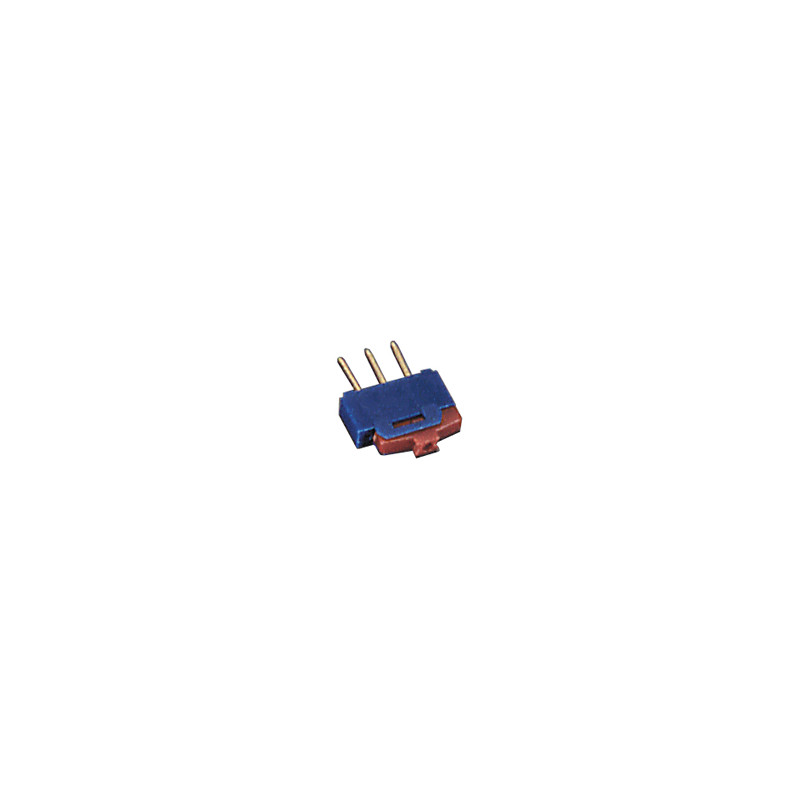

Single pole slide switch ON-ON for soldering

Specifications

• Max. current/voltage rating with resistive load : 0,5A / 12V
• Minimum load : 1mA 10mV
• Initial contact resistance : 20 mΩ max.
• Insulation resistance : 10.000 MΩ min. at 500VDC
• Dielectric strength :
• 250 Vrms. 50 Hz min. between terminals
• 2.000 Vrms 50 Hz min. between adjacent poles of switches placed side by side
• Electrical life with nominal load : 2.000 cycle
