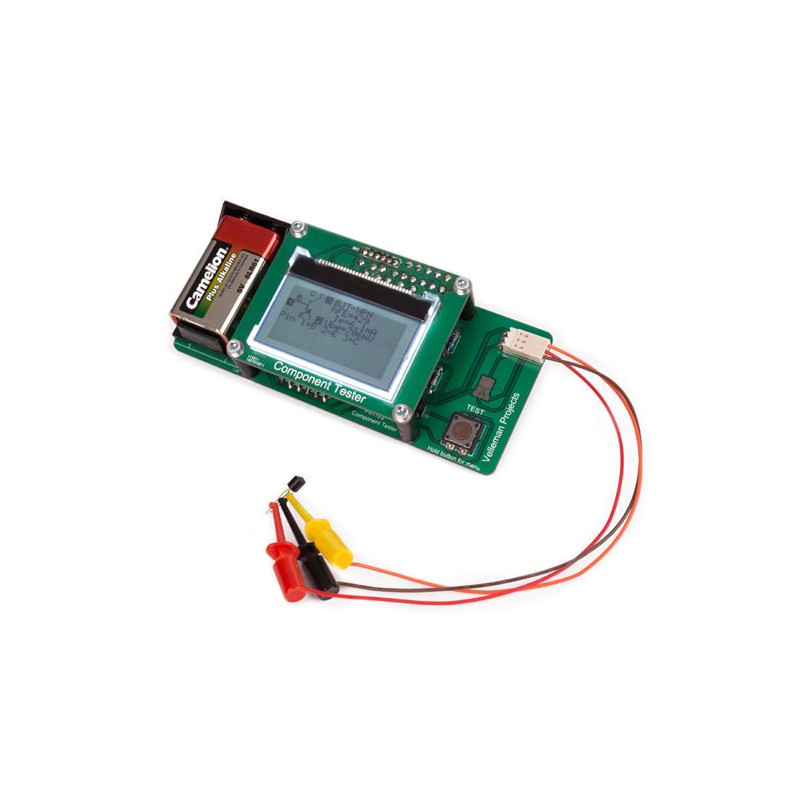

WSMI8115 - Kit Testeur de Composants

For testing components: resistors, coils, capacitors, diodes, etc.

Specifications

• Dimensions: 137 x 60 x 30 (L x W x H)
• Resistance resolution: 0.1 Ohm (max. 50 MOhm)
• Capacitance range: 28 pF to 100 mF
• Inductance range: 0.01 mH to 20 H
• Power supply: 9 V battery
• Test current: 20 mA
• Test speed: 2 seconds
• Auto power off
• Displays the pin layout
