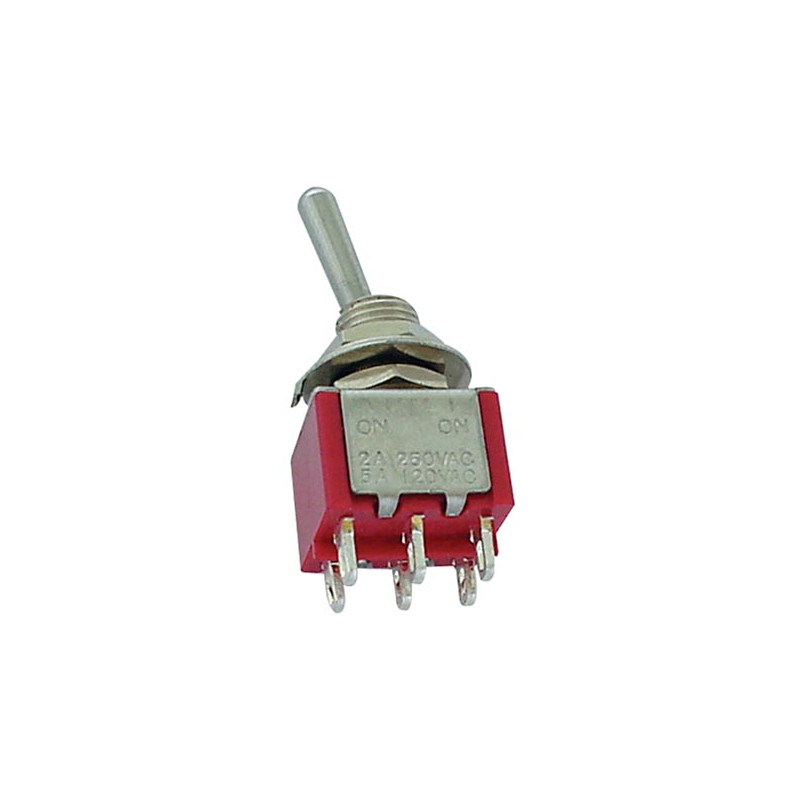

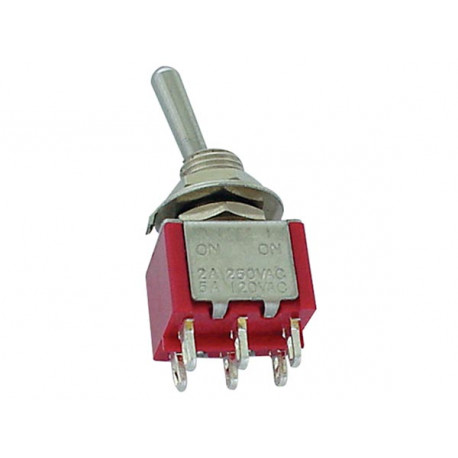

Double pole soldering switch (ON)-OFF-(ON)

Specifications

• Bipolar (6-pin)
• Switching position:

  • 2-3, 5-6: (ON)
  • OPEN: OFF
  • 2-1, 5-4: (ON)
• Breaking capacity: 5A with a resistive load of 120Vac or 28Vdc
• Electrical life: 50000 cycles on/off at full load
• Initial contact resistance: max. 10mohm at 2-4VDC / 10mA for gold and silver contacts
• Insulation resistance: min. 1000Mohm
• Working temperature: -30°C to +85°C
