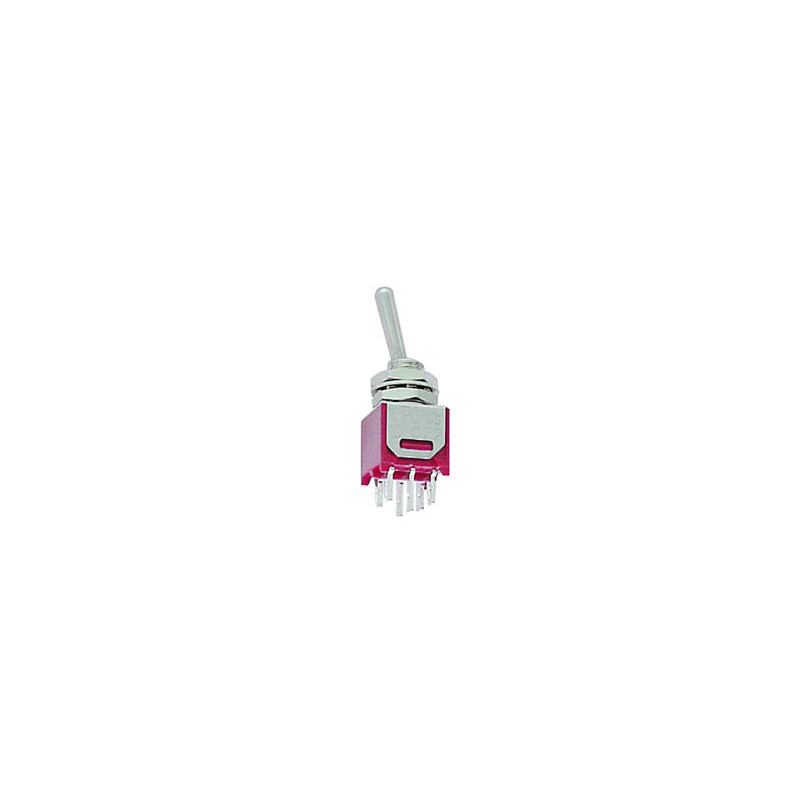

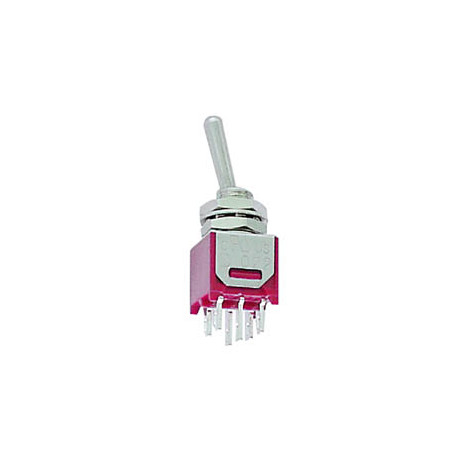

Bipolar On-Off-On switch to solder 3A/250V

Specifications

• 2-pole (6-pin)
• Switching position:

  • 2-3,5-6: ON
  • OPEN: OFF
  • 2-1, 5-4: ON
• Breaking capacity: 3A with a resistive load of 120Vac or 28Vdc
• Initial contact resistance: max. 20mohm at 2-4Vdc / 100mA for silver and gold contacts
• Insulation resistance: min. 1000Mohm
• Electrical life: 60000 on/off cycles at full load
• Working temperature: -30°C to +85°C
