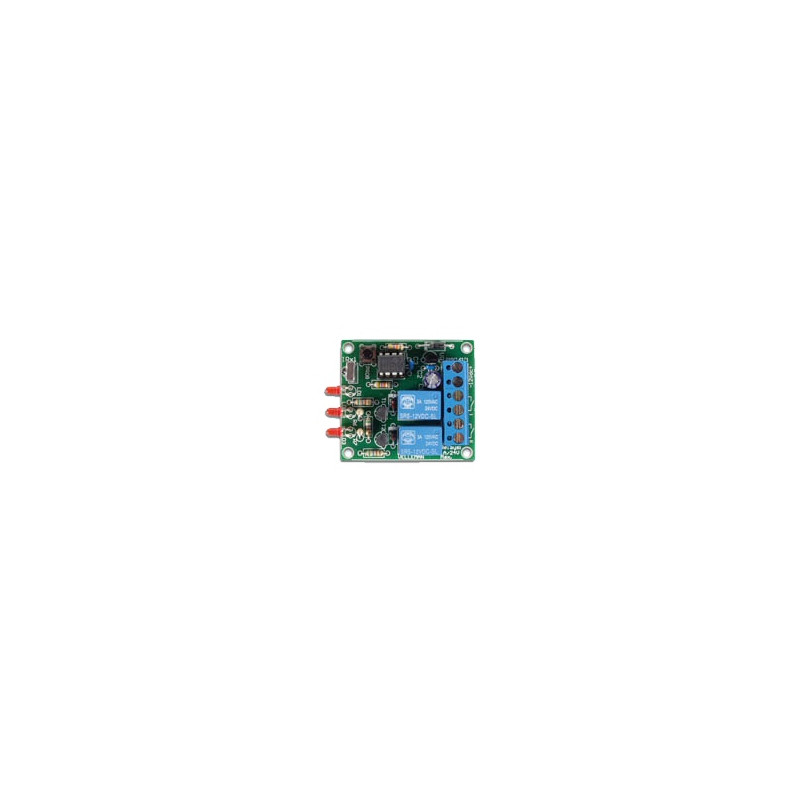

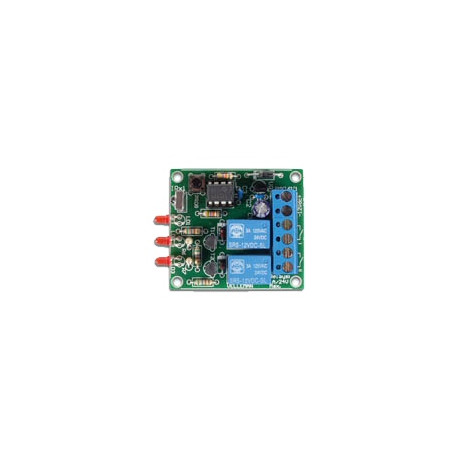

WSRC161 - 2-Channel IR remote receiver

Specifications

• Power supply: 12 VDC
• Current consumption: 75mA max.
• Dimensions: 45 x 50 x 15mm
• Two channels with relay output (24V AC/DC 1A max.)
• Reception and active channel indication via LEDs
• Choice of switching/pulse triggering for both channels
• Teach-in mode per channel
• Settings are stored in EEPROM
