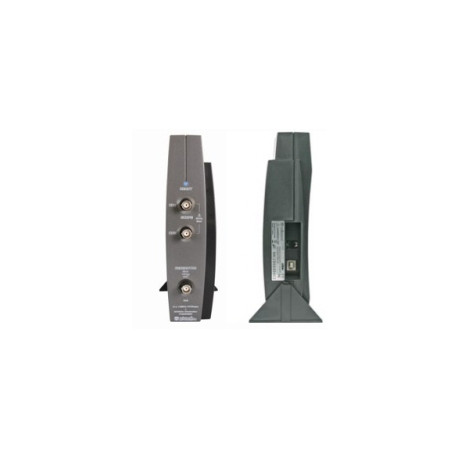

USB-PC Scope + Generator (2CH.)

Powerful PcLab2000-LT software for two-channel oscilloscope, spectrum analyser, recorder, function generator and Bode plotter. Integrated wave editor and automated sequencer via file or PC input.

Features

• Colour: Black
• Dimensions (W x H x D): 55 x 205 x 175 mm
• Weight: 750 g

function generator:
quartz crystal based stability
standard waveforms: sine, square, triangle
predefined composite signals: sine(x)/x, DCV, sweep, ...

oscilloscope:
automatic setup function and X10 option
pre-start function
readout: True RMS, dBV, dBm, p to p, Duty cycle, Frequency...
transient signal recorder:
automatic data storage
automatic recording for more than one year
saving and displaying of screens

Bode plotter:
automated synchronisation between oscilloscope and generator
logarithmic scale function
volt or dB scale
phase plotting

spectrum analyser:
linear or logarithmic time scale
operating principle: FFT (Fast Fourier Transform)
FFT input channel: CH1 or CH2
zoom function


Supplied with

• operating instructions
• USB PC Scope + Generator
• USB cable
• software on CD-ROM
• 1 x 60 MHz probe ( PROBE60S: 60 MHz PROBE )
• BNC male to RCA female adapter (CBNC15: BNC MALE TO RCA FEMALE ADAPTER)
