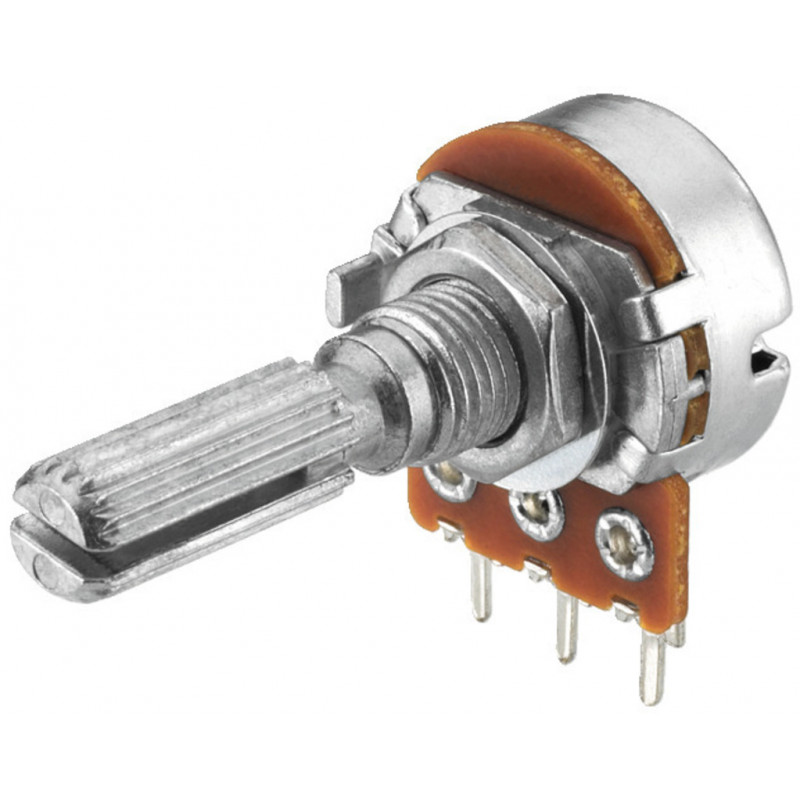

Potentiometer mono 10 kO, 0.1W Logarithmic

Potentiometer, mono, 10 kΩ
Logarithmic
Slotted 6 mm shaft
For 18-tooth push-on buttons
Nut fixing and PCB solder contacts

TECHNICAL SPECIFICATIONS

• VRA-100M10
• Resistance 10 kΩ
• Characteristic log.
• Power rating 0.1 W
• Insulating resistance < 100 MΩ/ DC 500 V
• Test voltage ˜ 500 V/1 min.
• Tracking error ±3 dB, 0/-40 dB
• Rotation a
