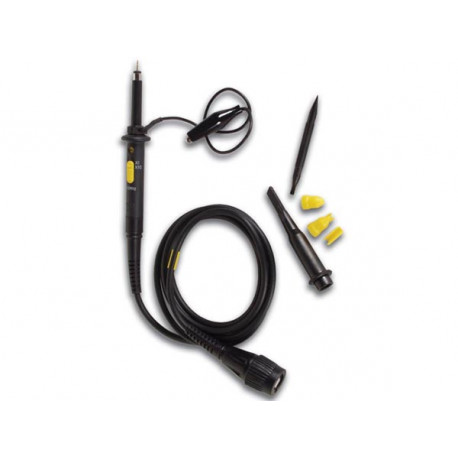

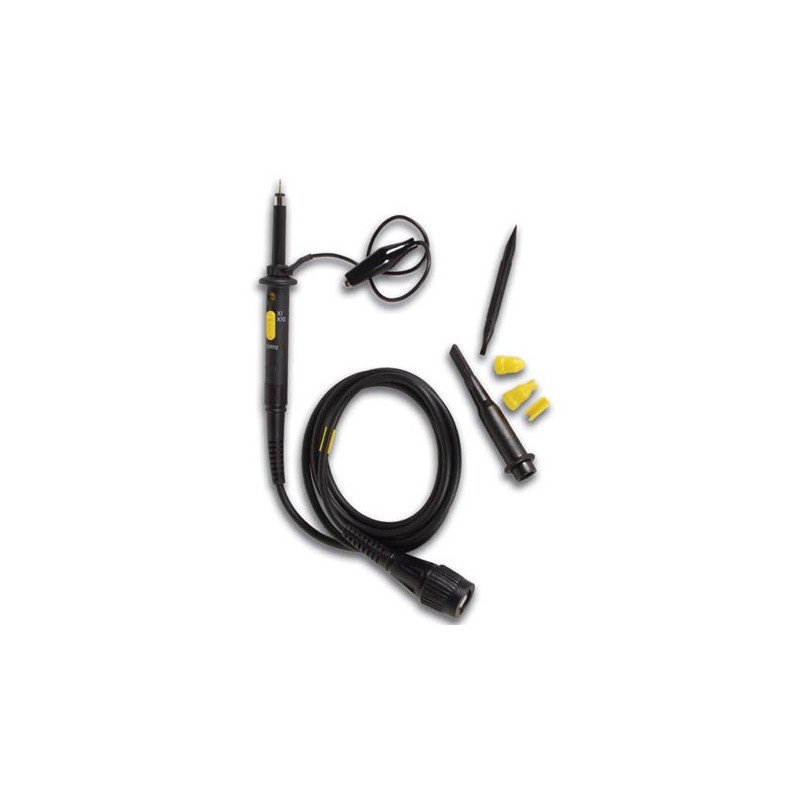

60 MHz Measurement Probe

Features

• 2 Positions X1 / X10
• Compensation setting: 10 to 50 pF
• Cable length: 1.2 m
• Safety: according to IEC 1010 cat II
• With insulated BNC connector

position x1

• attenuation: 1 : 1
• bandwidth: DC to 15MHz
• rise time: 23.3 ns
• input resistance: 1 Mohm (oscillosc. input resistance)
• input capacitance: 46 pF + oscillosc. capacitance
• operating voltage: 600 VDC incl. max. AC (reduced with rising frequency)

position x10

• attenuation: 1 : 10
• bandwidth: DC to 60 MHz
• rise time: 5.8 ns
• input resistance: 10 Mohm (if scope input = 1 Mohm)
• input capacitance: ± 15 pF
• operating voltage: 600 VDC incl. AC max (reduced with rising frequency)
