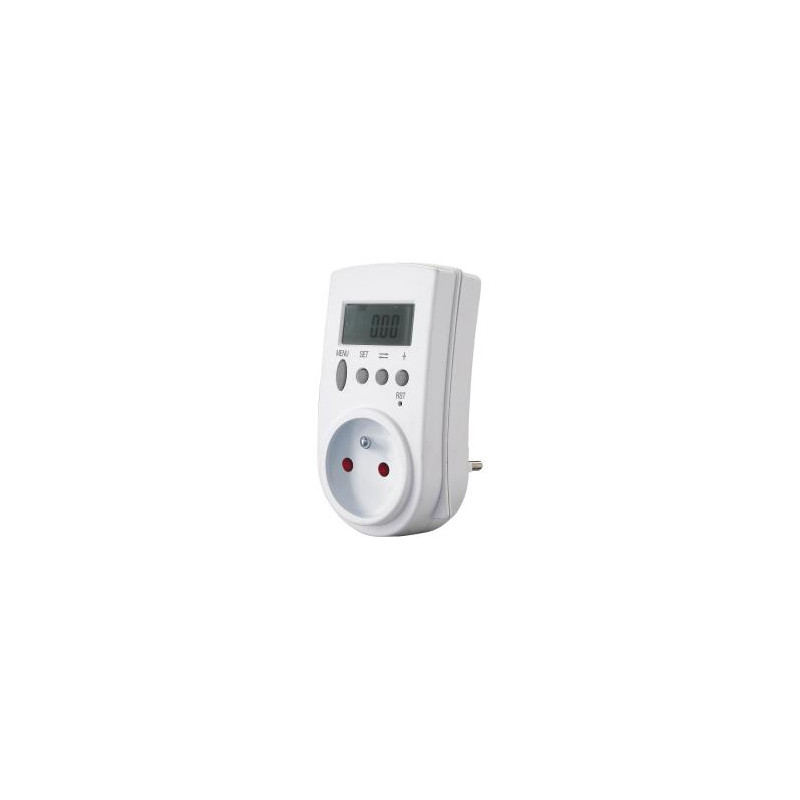

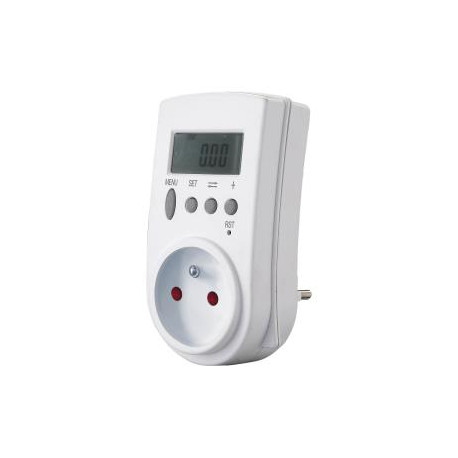

Socket energy meter - LCD display

Specifications

• Dimensions (W x H x D): 65 x 120 x 40 mm
• Single tariff setting
• Power supply: 230 V~ 50/60 Hz
• Maximum power : 3680 W
• Power measurement : 3680 W maximum
• Maximum current: 16 A
• Protection : IP20
• Operating temperature : -20 to +40° C
• Tariff display: 0-99.99
• Energy display: 0-9999.99 KWh
• Data backup in case of power failure
• 9 displays :
  Charge
  Tariff (1 type)
  KWH (Kilowatt / Hour)
  W (Watts)
  VA (Apparent Power)
  V (Voltage)
  A(Current)
  Hz (Frequency)
  PF (Power Factor)
