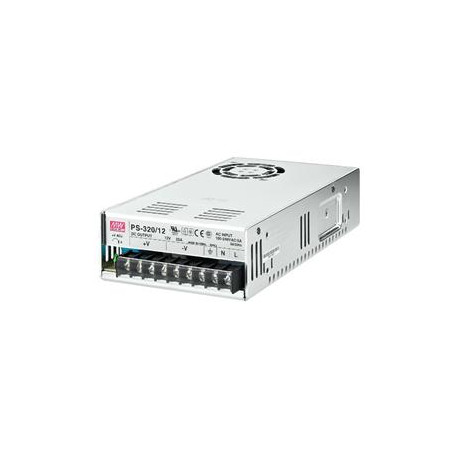

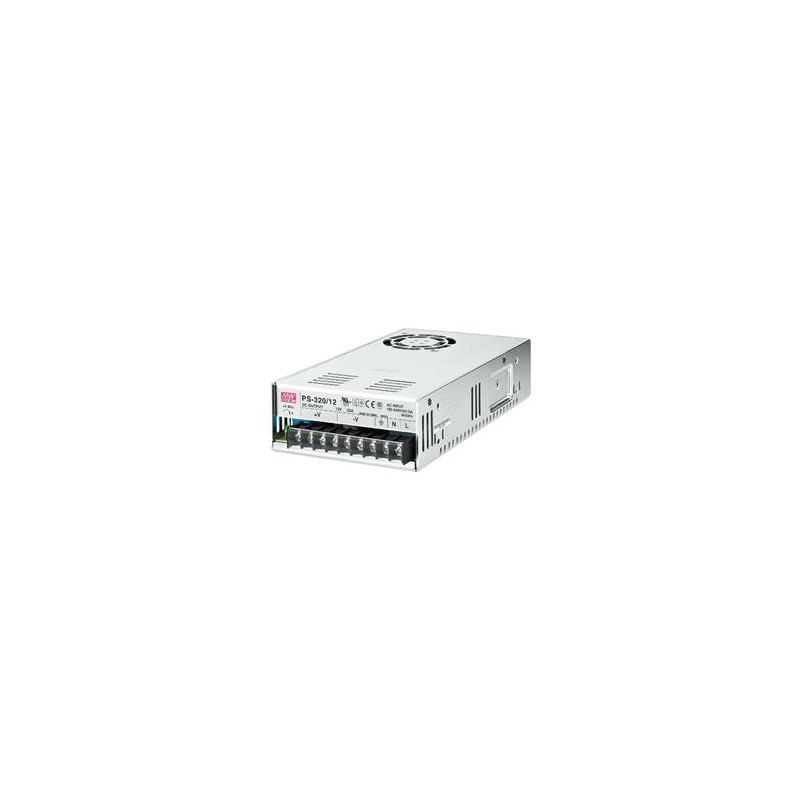

Power supply 100-240VA - 12 VC - output current 25 A

Specifications

• universal AC input / full range
• cooling: natural convection
• power LED indicator
• supports 300 VAC inputs for 5 seconds
• no-load power consumption < 0.3 W
• compact and low profile 1U
• max. operating altitude 5000 m
• operating temperature: -30 °C to +70 °C
• dimensions (L x W x H): 215 x 115 x 30 mm
• weight: 0.9 kg

output:

• DC voltage: 12 V
• nominal current: 26.7 A
• current range: 0-26.7 A
• power rating: 320.4 W
• ripple & noise (max.): 150 mVp-p
• voltage setting range: 10-13.2 V
• voltage tolerance: ± 1.0 % (± 1.0 %)

input:

• voltage range:
• 88-264 VAC
• 124-370 VDC
• voltage surge withstand: 300 VAC for 5 seconds
• frequency range: 47-63 Hz
• AC current (typ.):
• 4 A / 115 VCA
• 2 A / 230 VAC
• inrush current (typ.): cold start 50 A / 230 VAC
• leakage current: < 0.75 mA / 240 VAC

protection:

• overload:
• 105-135% of rated output power
• protection type: hiccup mode, automatic recovery once the fault is resolved
• overvoltage:
• 13.8-16.2 V
• protection type: hiccup mode, automatic recovery when fault is cleared
