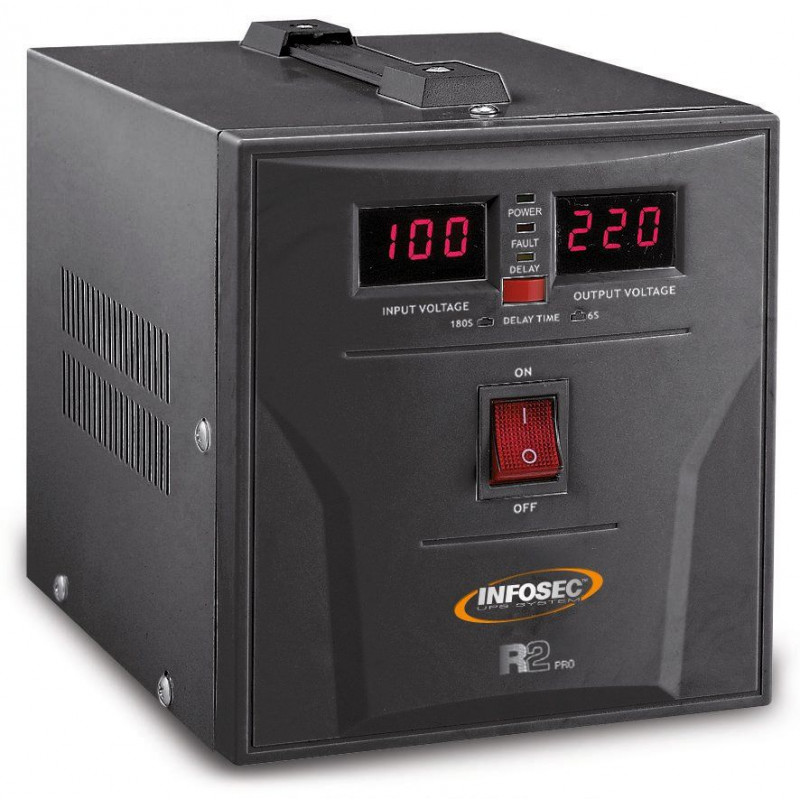

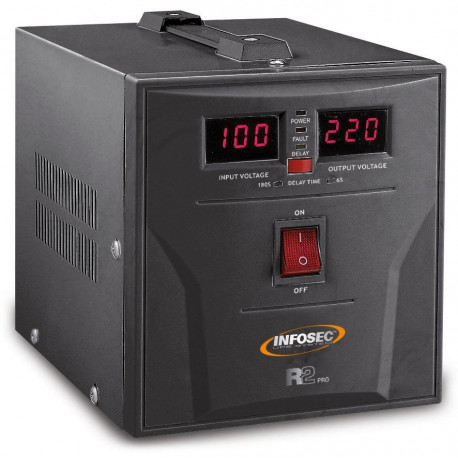

Voltage regulator R2 PRO 2000VA

Specifications

• Power: 2000VA / 1200W
• Dimensions (WxDxH): 200x160x190mm
• Net weight: 5.9kg
• Operating voltage range: 72-290VAC
• Regulation voltage range: 80-260VAC
• Frequency: automatic detection 50 / 60Hz

Production

• Operating voltage: 180-260VAC
• High cut-off voltage: 260
• Low cut-off voltage: 180
• Frequency: automatic detection 50 / 60Hz
• Safety cycle: 6 seconds or 180 seconds
• Connection type: 2xFR / Schuko

Regulation

• Regulation%: +/- 8% Number of outlets: 9
• Number of outlets: 9
• Type of control: Relay type

Indicators

• Operation: Green LED
• Delay: Yellow LED
• Fault / Protection: Red LED
• Voltmeter: 1 voltmeter LED input and output

Protection

• Overheating: automatic shutdown at 120°C
• Short circuit and overload: automatic shutdown
• Circuit breaker / fuse: 12A / 250VAC
• Overvoltage and undervoltage: automatic shutdown at 290 V and 88 V
